How Do I Set Up Additional Attributes for Products

Attributes can be created to support additional fields for your product record. These additional fields can then be added to a product table in the Layout Designer



Adding Additional Attributes for Text

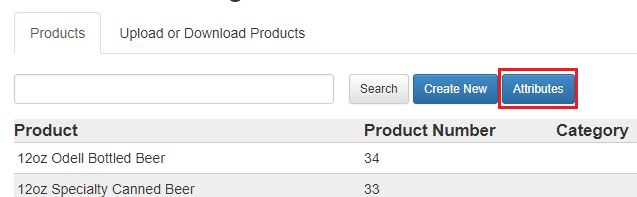

1) From the Product Library. Click on the ‘Attributes’ button:



2) Click on the ‘Create New’ button:

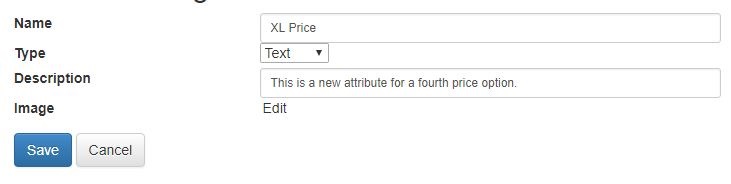

3) For text fields, give your attribute field a Name (this will only be the name or description of the new field).

4) Leave the Type set to “Text”.

5) Use the Description to add any notes, or leave this blank:

Click ‘Save’.

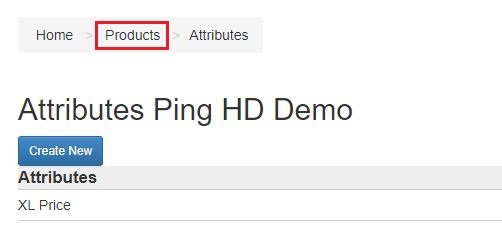

Click back on the ‘Products’ link to go back to your Product Library:

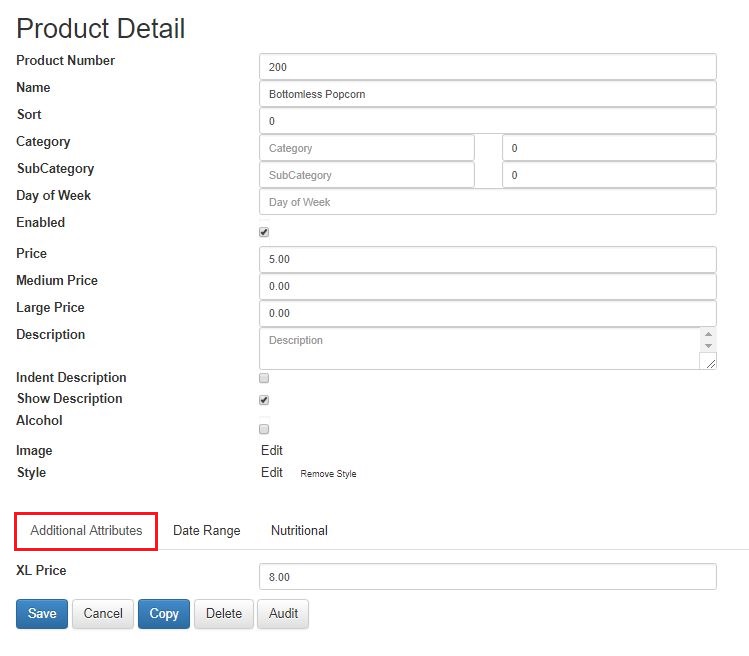

Click on any product to see the new attribute field at the bottom of the product record, under the Additional Attributes tab:

To add the attribute to a product table in a layout, click on ‘Layouts’ from the Home page. Open the Designer for your layout. Double-click on the product table or create a new product table. Create a new cell or use an existing cell on the table and use the Field drop down to select your attribute from the list:



Adding Addition Attributes for Images / Images with Text

You can also create attributes to enable or disable images that are added to your product table.

1) From the Product Library. Click on the ‘Attributes’ button:

2) Click on the ‘Create New’ button:

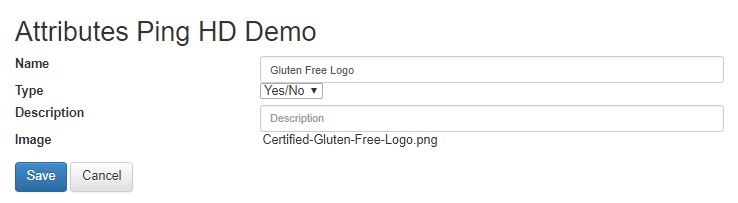

3) Give your attribute field a Name (this will only be the name or description of the new field).

4) Change the Type set to “Yes/No”.

5) Use the Description to add any notes, or leave this blank.

6) Click on the ‘Image’ link to open the asset library and click on the image file you would like to use. If the file has not yet been added, you will need to go to the Asset Library and upload the file:

7) Click ‘Save’.









Updated on April 14, 2019
